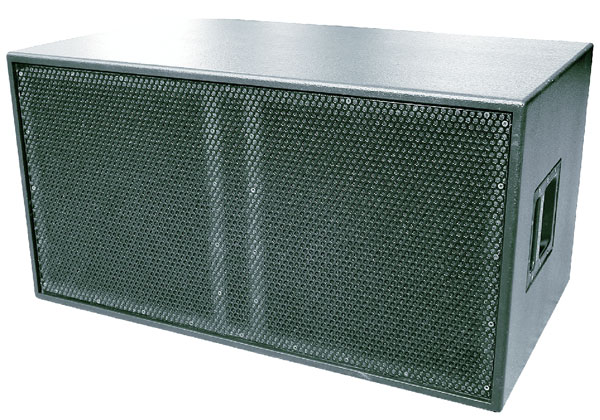

The MTI BR 281C sub-bass system is a dedicated sub woofer designed for special effects and ultra-low frequency performance. It is mainly designed to extend the power bandwidth of MTI reinforcement systems to 28 Hz.
The unique, heavily braced enclosure is a reflex loaded design which houses two high efficiency 18″ long excursion driver for extended low frequency response.
Its internally braced construction prevents energy absorption by cabinet walls at the very high pressures generated within the enclosure.
For large scale sound reinforcement, BR 281C enclosures can be close stacked on the ground.
Features
Applications
The BR 281C can be combined with sub-bass units available from the MTI audio range.
The BR 281C is designed to be used in conjunction with the MTI MPA 82000 amplifier which maximises bandwidth and protects drivers from damage in all modes of operation.
Specifications
Type: Ultra low frequency sub-bass system
Bandwidth: 28-250 Hz +/- 3 dB
Drivers: Two low frequency 18″ cone transducer with 4″ voice coil
Rated power: 1000 watts RMS 2000 Watts programme
Rec. amplifier: MPA 82000
Sensitivity: 101 dB (note 1)
SPL: 131 dB continuous, 137 dB peak (note 2)
Impedance: 4 Ohms nominal
Crossover: 80-200 Hz depend upon application
Enclosure: 340 litre ported heavily braced, birch plywood
Finish: Textured black paint
Protection grill: Foam backed 2 mm perforated steel, black painted with 49% free air flow
Connectors: 2 x Speakon
Dimensions: (W)525 mm x (H)995 mm x (D)760 mm
Weight: 79 kg
Note 1: Measured in half-space conditions at 1 metre with 2.83V input,
using band limited pink noise.
Note 2: Measured at 1 metre using band limited pink noise.
