kr 34 200,00

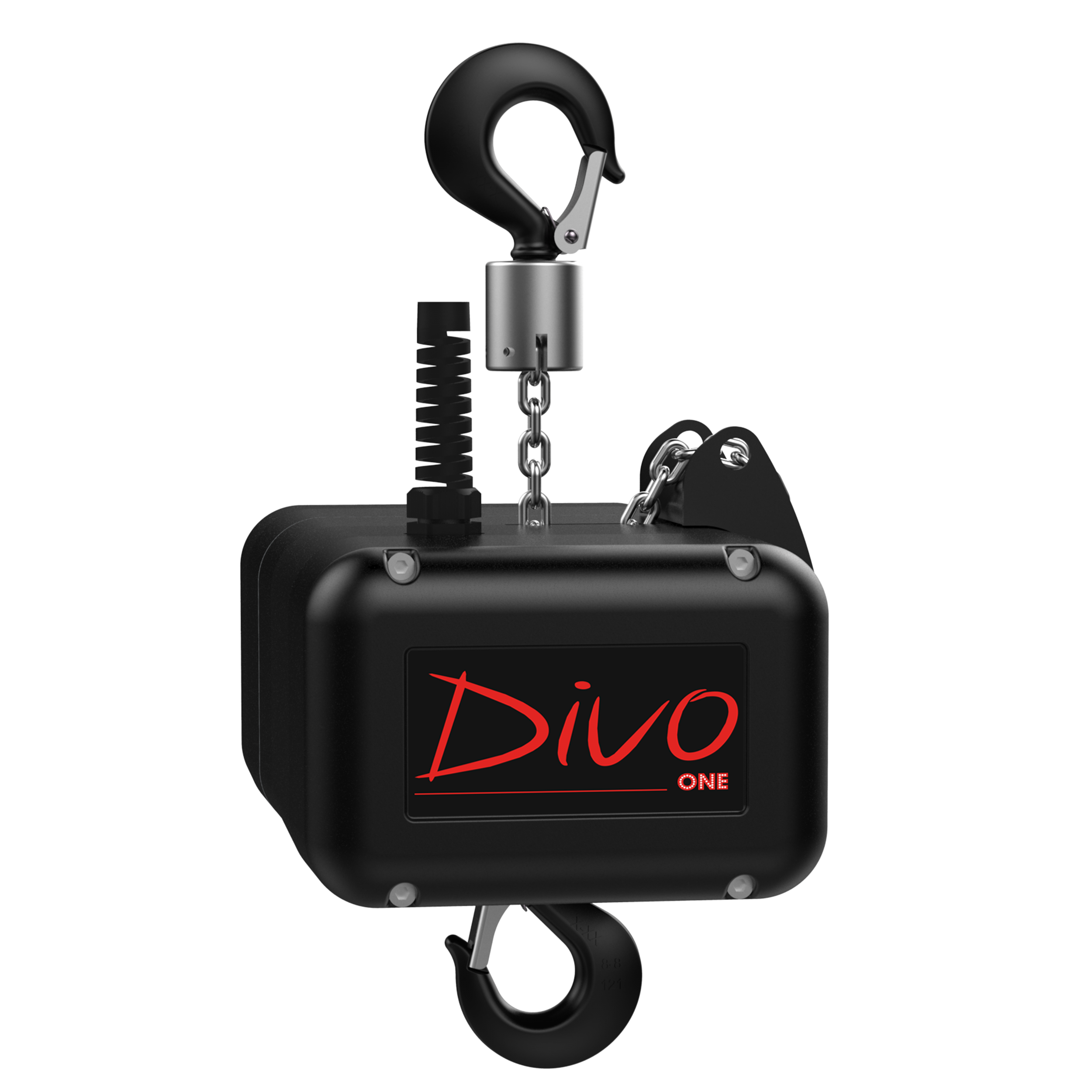

Electric chain hoist, direct tension, aluminum body, chain guide system designed to reduce jamming risk, double swivel hook.
Complies with the IGVW SQP22 guideline
24 m chain
| Load capacity | 250 kg |
| Lifting speed at 50 Hz | 4m / min |
| Operating voltage | 400V 50 Hz |
| Protection Class | IP 55 DIN 40050 |
| Motor power at 50 Hz | 0.18 kW |
| FEM Class | 2m |
| DC braking system | 2 brakes |
| Noise level | <67.5 dB (full load) |
| Loading wheel | 5 pockets |
| RUD® Load Chain | 4×12 mm |
| Number of chains | 1 |
| Chain weight | 0.36 kg / m |
| Weight of the body | 12 kg |
| Type of control | Direct Control |
| Type of connector | Red Plug | 400V EEC 16A – 3P + T |
| Climbing use | permitted |
| Safety factor | 8: 1 |
| Handles | optional |
| External Load Cell | Optional |
